Fan Filter Unit (FFU)-Control
Method: Group orsingle unitcontrolFan
Type: AC/EC-Plenum
Material: Cold-rolled steel withspray coating/Galvanizedsteel/Aluminum/Stainlesssteel*Airflow
Speed (m/s): 0.35~0.55*
Applicable Fields: Biopharmaceuticals Food ProcessingPlants, Electronics/Semiconductor Plants, Laboratoriesand Testing Institutions

Standard High-Efficiency Air Outlet
Box Material: Cold-rolledsteel plate with bakingpaint/Stainlesssteel-
Air Outlet Position: Side outlet/Top outlet
Flange Opening:Square/Round-
Applicable Fields: Suitable for various cleanroomgrades and multiple roof structuresin non-unidirectionalflowenvironments

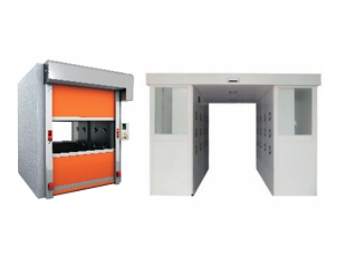

Automatic Rolling/Sliding DoorCargo Air Shower Room
Door Type: Rolling/Sliding
Stainless Steel Nozzle Diameter: 025mm
Cabinet Material: Cold-rolled steelwith spray coating/Stainlesssteel plate
Control System: Microcontroller / PLC
Power Supply Voltage:220V/380V
Dimensions: Customizable
Features:
1.Infrared sensorautomatic doorsystem
2.Intelligent programmable control
3.Safety sensorconfiguration
Applicable Fields: Biopharmaceuticalplants, foodprocessing factories, electronics/semiconductorplants,laboratories andtesting institutions, LCD andoptoelectronic displaymanufacturing enterprises

Stainless Steel Electric Air VolumeRegulating Valve

Purpose Thisvalve builds uponthe manual regulatingvalve by replacing the handle operationwithanelectricactuator. The motor controlsthe blade opening anglevia a linkage mechanismto adjust airflow. Itisidealforenvironments where manual operation is inconvenient.

Diffuser

Separatorless Filter
Efficiency Grades: H13, H14, U15, U16, U17
Filter Media: Ultra-fine glass fiber filterpaper
Frame Material: Aluminum profile/Aluminum plate /Galvanized iron/Stainlesssteel
Available Thicknesses (mm): 38, 46, 50, 66,69,75,78,80,90,96,100,110,120,150
Applicable Industries: Hospitalsbiopharmaceutical plants,electronics/semiconductor factories, foodprocessing facilities, metro systems, airports

Glass Fiber Bag Filter
Efficiency Grades: M5, M6, F7, F8
Filter Media: Ultra-fine glassfiber
Bag Stitching: Ultrasonicthread/Machine-sewn thread
Frame Material: Aluminum profile/Galvanizediron
Available Aluminum Thicknesses (mm): 21,25
Applicable Industries: Automotive paint shops,commercialbuildings- used in centralizedventilationandcentralair conditioning systems(Ildeal forenterprises with fire safetycertification)

High-flow filter cartridges use an internal pressure filtration design withone open end, with the fluid flowing from inside to outside.
Adding an internal support core allows for external pressure filtration,where the fluid flows from outside to inside.
The large diameter (152 mm) of the filter cartridge increases the effectivefiltration area, significantly reducing the number of cartridges required andallowing for smaller housing sizes.
In application, the long filtration life helps lower investment and laborcosts.
